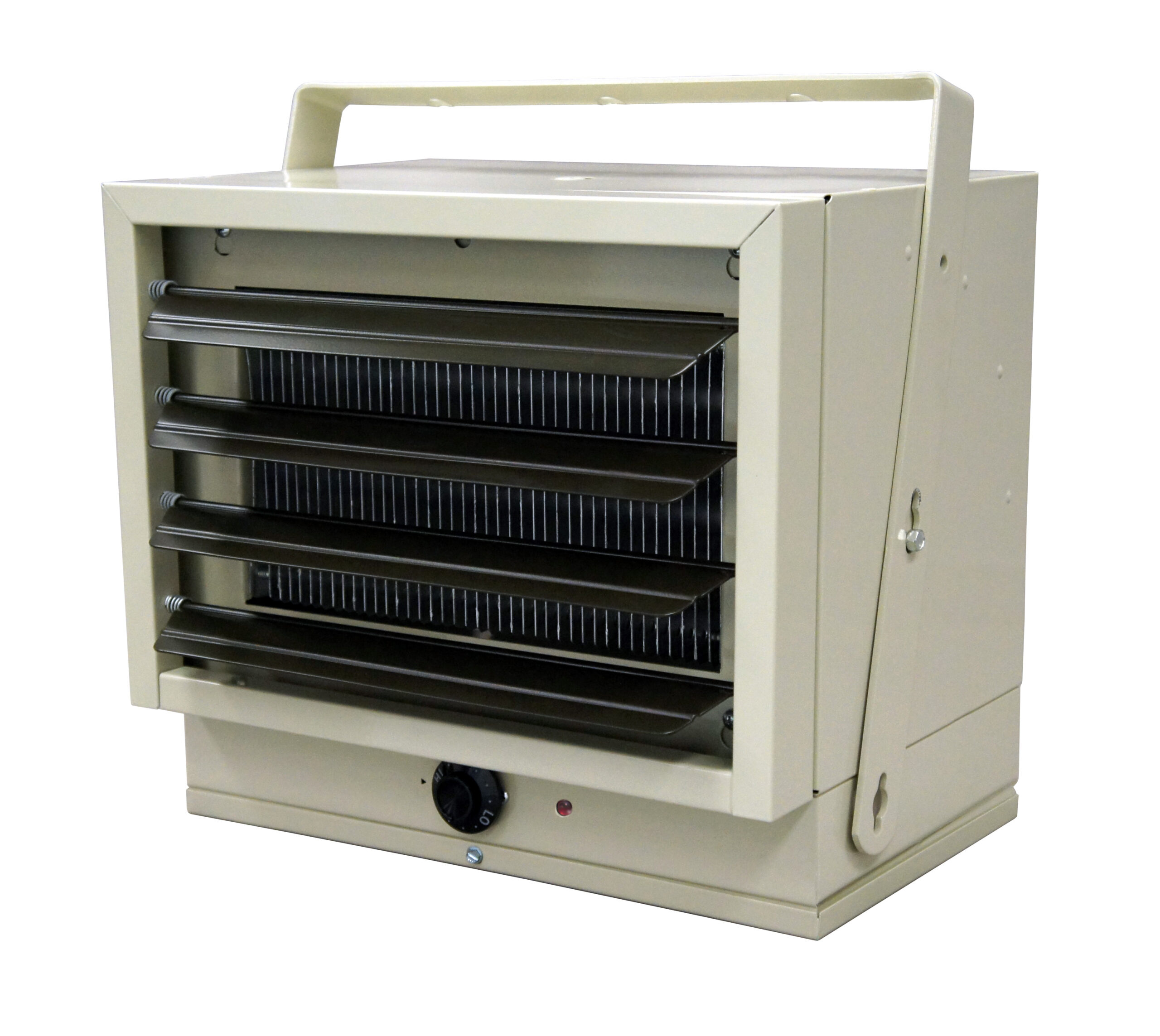

Horizontal/Downflow Unit Heater – MWUH Series

IDEAL SPACES | Factories; Garages; Maintenance Rooms; Warehouses; Public Buildings; Service Stations; Workshops; Stairwells

COLOR| Beige

TEMP RANGE | 45-90 F

CFM | 270

DIMENSIONS | 14″ L x 12-1/2″ H x 11-1/4″ D

This heavy-duty heater provides a longterm comfort solution wherever you need to warm up garages, workshops, basements, even outdoor spaces. Aim heat anywhere with adjustable louvers and flexible mounting options for both horizontal and vertical applications.

  • Heater comes equipped with ceiling-mount bracket for horizontal or vertical flow mounting or any position in between
  • Built-in single-pole thermostat
  • Copper-brazed steel fins with steel sheathed tubular elements for uniform heating and longevity
  • Adjustable louvers control air throw direction
  • Automatic fan delay eliminates cold drafts on start-up and discharges residual heat from the heater body during shut down
  • High limit cutout automatically shuts off current in event of overheating and reactivates unit when temperature returns to normal
  • Disconnect switch (DS30) option available for heaters
  • 24 amps or lower

Additional information

CATALOG NUMBER VOLTS WATTS AMPS SHIP WT.(lbs.)
MWUH5004APQ 240 5000/3750 20.8/16.63 25 lbs.
3332/2500 13.9/10.4
208 3750/3123 18.0/15.0
2500/1875 12.0/9.0
MWUH7504 240 7500/6250 31.3/26.0 27 lbs.
5000/3750 20.8/15.6
208 5625/4685 27.1/22.5
3750/2812 18.0/13.5

Product Manuals and Literature
