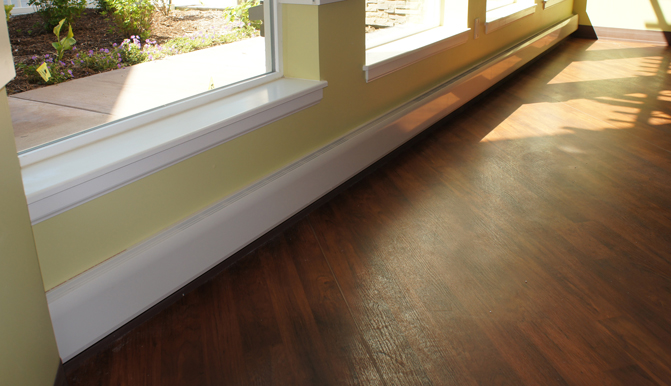

Slimline Aluminum Convector – DBSL Series
- IDEAL SPACES | Offices; Hallways; Lobbies; Conference Rooms; Condos; Retail; Other Areas with Floor-to-Ceiling Windows
- COLORS | White, Beige, Aluminum, Bronze, Black, Charcoal Gray& Custom Colors
- DIMENSIONS | 6″ H x 2-3/4″D (Length varies)
- Approved for residential applications
- Ideal for elegant, supplemental comfort under windows for heat loss and condensation prevention
- Unique two-piece extruded aluminum Snap-Lock closure design secures the one-piece top and front grilles to the one-piece back and bottom providing a rapid, secure fit all along the length of the unit
- Front/bottom inlet air grille utilizes slots which create an attractive installation where inlet grille is visible
- Unit comes standard with rear knockouts and unpainted back. Optional custom-painted backs and rear knockout options are available
- Blend into any dcor with custom paint and anodizing upon request
- Units can be mounted on floor, wall, or pedestals
- Customize space with wall-to-wall installation, or as discrete units in standard lengths of 2-10 ft.
- Units are available in a wide range of heating capacities per foot length (see specifications)
- Inside and outside corners can be ordered factory-cut and mitered to fit difficult or unusual spaces
- Architectural-style end sections give a finished look when used as a stand-alone or where a wall-to-wall run is not desired
- Full line of trim accessories, including matching blank sections, end caps, filler sections, inside and outside corners, diagonal end sections, and splice plates
- Optional built-in controls include: line-voltage thermostat; two-stage thermostat; on/off switch; transformer relay; power relay and pneumatic/switch
- Right -or left-hand entry and built-in wire way (equivalent to 1/2 in. conduit) with factory-installed wiring
- Easy connection of supply wiring from bottom, rear or end, as well as multiple wiring of adjacent heaters from one entry point
- Thermal limit switch with linear type (full length) sensing bulb provides constant protection against overheating from any cause
- Switch will automatically reset when normal operating temperatures are restored
- Discharge air openings in top grille are punched slots which are pencil-proof for safety
Additional information
| CATALOG NUMBER | LENGTH | WATTS PER FT. | TOTAL WATTS | AMPS 120V | AMPS 208V | AMPS 240V | AMPS 277V | AMPS 347V | AMPS 600V | SHIP WT.(lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| DBSL01 | 24 (609mm) |
125 | 250 | 2.1 | 1.2 | 1 | 0.9 | |||
| 150 | 300 | 2.5 | 1.4 | 1.3 | 1.1 | 8 | ||||
| 188 | 376 | 3.1 | 1.8 | 1.6 | 1.4 | |||||
| 250 | 500 | 4.2 | 2.4 | 2.1 | 1.8 | 1.4 | ||||
| DBSL02 | 28 (711mm) |
100 | 200 | 1.7 | 1 | 0.8 | ||||
| 125 | 250 | 2.1 | 1.2 | 1 | 0.9 | |||||
| 150 | 300 | 2.5 | 1.4 | 1.3 | 1.1 | 8 | ||||
| 188 | 376 | 3.1 | 1.8 | 1.6 | 1.4 | |||||
| 250 | 500 | 4.2 | 2.4 | 2.1 | 1.8 | 1.4 | ||||
| DBSL03 | 3 (914mm) |
100 | 300 | 2.5 | 1.4 | 1.3 | 1.1 | |||
| 125 | 375 | 3.1 | 1.8 | 1.6 | 1.4 | 1.1 | ||||
| 150 | 450 | 3.8 | 2.2 | 1.9 | 1.6 | 1.3 | 10 | |||
| 188 | 564 | 4.7 | 2.7 | 2.4 | 2 | 1.6 | ||||
| 250 | 750 | 6.3 | 3.6 | 3.1 | 2.7 | 2.2 | ||||
| DBSL04 | 4 (1219mm) |
100 | 400 | 3.3 | 1.9 | 1.7 | 1.4 | 1.2 | ||
| 125 | 500 | 4 | 2 | 2 | 2 | 1 | ||||
| 150 | 600 | 5 | 2.9 | 2.5 | 2.2 | 1.7 | 13 | |||
| 188 | 752 | 6.3 | 3.6 | 3.1 | 2.7 | 2.2 | 1.3 | |||
| 250 | 1000 | 8.3 | 4.8 | 4.2 | 3.6 | 2.9 | 1.7 | |||
| DBSL05 | 5 (1524mm) |
100 | 500 | 4.2 | 2.4 | 2.1 | 1.8 | 1.4 | 0.8 | |
| 125 | 625 | 5.2 | 3 | 2.6 | 2.3 | 1.8 | 1 | |||
| 150 | 750 | 6.3 | 3.6 | 3.1 | 2.7 | 2.2 | 1.3 | 17 | ||
| 188 | 940 | 7.8 | 4.5 | 3.9 | 3.4 | 2.7 | 1.6 | |||
| 250 | 1250 | 10.4 | 6 | 5.2 | 4.5 | 3.6 | 2.1 | |||
| DBSL06 | 6 (1829mm) |
100 | 600 | 5 | 2.9 | 2.5 | 2.2 | 1.7 | 1 | |
| 125 | 750 | 6.3 | 3.6 | 3.1 | 2.7 | 2.2 | 1.3 | |||
| 150 | 900 | 7.5 | 4.3 | 3.8 | 3.2 | 2.6 | 1.5 | 20 | ||
| 188 | 1128 | 9.4 | 5.4 | 4.7 | 4.1 | 3.3 | 1.9 | |||
| 250 | 1500 | 12.5 | 7.2 | 6.3 | 5.4 | 4.3 | 2.5 | |||
| DBSL07 | 7 (2134mm) |
100 | 700 | 3.4 | 2.9 | 2.5 | 2 | 1.2 | ||
| 125 | 875 | 4.2 | 3.6 | 3.2 | 2.5 | 1.5 | ||||
| 150 | 1050 | 5 | 4.4 | 3.8 | 3 | 1.8 | 24 | |||
| 188 | 1316 | 6.3 | 5.5 | 4.8 | 3.8 | 2.2 | ||||
| 250 | 1750 | 8.4 | 7.3 | 6.3 | 5 | 2.9 | ||||
| DBSL08 | 8 (2438mm) |
100 | 800 | 3.8 | 3.3 | 2.9 | 2.3 | 1.3 | ||
| 125 | 1000 | 4.8 | 4.2 | 3.6 | 2.9 | 1.7 | ||||
| 150 | 1200 | 5.8 | 5 | 4.3 | 3.5 | 2 | 27 | |||
| 188 | 1504 | 7.2 | 6.3 | 5.4 | 4.3 | 2.5 | ||||
| 250 | 2000 | 9.6 | 8.3 | 7.2 | 5.8 | 3.3 | ||||
| DBSL09 | 9 (2743mm) |
100 | 900 | 4.3 | 3.8 | 3.2 | 2.6 | 1.5 | ||
| 125 | 1125 | 5.4 | 4.7 | 4.1 | 3.2 | 1.9 | ||||
| 150 | 1350 | 6.5 | 5.6 | 4.9 | 3.9 | 2.3 | 30 | |||
| 188 | 1692 | 8.1 | 7.1 | 6.1 | 4.9 | 2.8 | ||||
| 250 | 2250 | 10.8 | 9.4 | 8.1 | 6.5 | 3.8 | ||||
| DBSL10 | 10 (3048mm) |
100 | 1000 | 4.8 | 4.2 | 3.6 | 2.9 | 1.7 | ||
| 125 | 1250 | 6 | 5.2 | 4.5 | 3.6 | 2.1 | ||||
| 150 | 1500 | 7.2 | 6.3 | 5.4 | 4.3 | 2.5 | 33 | |||
| 188 | 1,880 | 9 | 8 | 7 | 5 | 3 | ||||
| 250 | 2500 | 12 | 10.4 | 9 | 7.2 | 4.2 |
| NOTE: |
| 1. Cabinet available up to 12′ length. Custom length cabinets are priced with heater and blank to the next larger size. |
| 2. Backs are provided standard with no finish. For finished backs, add 10% to List price. |
| 3. Knockouts on back omitted by request only. |
| NOTE: All models are NON-STOCK made-to-order. When ordering, specify quantity, catalog number, voltage, wattage, optional controls, and color. Consult sales representative for lead times. |
| CATALOG NUMBER | DIMENSIONS (W x H x L) | INLET |
|---|---|---|
| SLCBS1F | 2-3/4″ x 6″ x 1′ | Front |
| SLCBS1B | Bottom | |
| SLCBS2F | 2-3/4″ x 6″ x 28″ | Front |
| SLCBS2B | Bottom | |
| SLCBS3F | 2-3/4″ x 6″ x 3′ | Front |
| SLCBS3B | Bottom | |
| SLCBS4F | 2-3/4″ x 6″ x 4′ | Front |
| SLCBS4B | Bottom | |
| SLCBS5F | 2-3/4″ x 6″ x 5′ | Front |
| SLCBS5B | Bottom | |
| SLCBS6F | 2-3/4″ x 6″ x 6′ | Front |
| SLCBS6B | Bottom | |
| SLCBS7F | 2-3/4″ x 6″ x 7′ | Front |
| SLCBS7B | Bottom | |
| SLCBS8F | 2-3/4″ x 6″ x 8′ | Front |
| SLCBS8B | Bottom | |
| SLCBS9F | 2-3/4″ x 6″ x 9′ | Front |
| SLCBS9B | Bottom | |
| SLCBS10F | 2-3/4″ x 6″ x 10′ | Front |
| SLCBS10B | Bottom |
| NOTE 1: Blank section grilles are not punched unless requested. |
| CATALOG NUMBER | DESCRIPTION | SHIP WT.(lbs.) |
|---|---|---|
| SLCECL | End Cap – Left | 1 |
| SLCECR | End Cap – Right | |
| SLCICF | Inside Corner-Front In | 5 |
| SLCICB | Inside Corner-Bottom In | 5 |
| SLCOCF | Outside Corner-Front In | 4 |
| SLCOCB | Outside Corner-Bottom In | 4 |
| SLCDESBL | Dec. End Section-Bot In, Left | 5 |
| SLCDESBR | Dec. End Section-Bot In, Right | 5 |
| SLCDESFL | Dec. End Section-Fnt In, Left | 4 |
| SLCDESFR | Dec. End Section-Fnt In, Right | 4 |
| SLCSP | Splice Plate | 1 |
| SLCFL3 | Filler Section 3″ | 1 |
| SLCFL6 | Filler Section 6″ | 1 |
| SLCFL9 | Filler Section 9″ | 1 |
| SLCFL12 | Filler Section 12″ | 1 |
| SLCFL18 | Filler Section 18″ | 1.5 |
| SLCFL24 | Filler Section 24″ | 1.5 |
| SLCDRF | Receptacle Section-Fnt In | 1.5 |
| SLCDRB | Receptacle Section-Bot In | |
| SLCPEF | Pneu/Ele Sw-Fnt In | 2 |
| SLCPEB | Pneu/Ele Sw-Bot In | |
| **SLCPK3A | Architectural Pedestal | 2 |
| SO1A | Stand-Off Bracket | 1 |
| N/A – Not Available. |
| *Add suffix -P for painted, -C for clear anodized, -B for bronze anodized. |
| **One pedestal. Two required on units up to 10′, three required on units over 10″. |
This product is a custom Made-To-Order (MTO) product. It is not covered by the Marley Engineered Products Merchandise Return Policy and is non-cancellable, exchangeable, or returnable.
